| 精密光纤耦合器 |
我公司提供的多种光纤耦合器，可实现光纤与光纤、光纤与其它器件耦合，技术成熟，质量稳定。
|

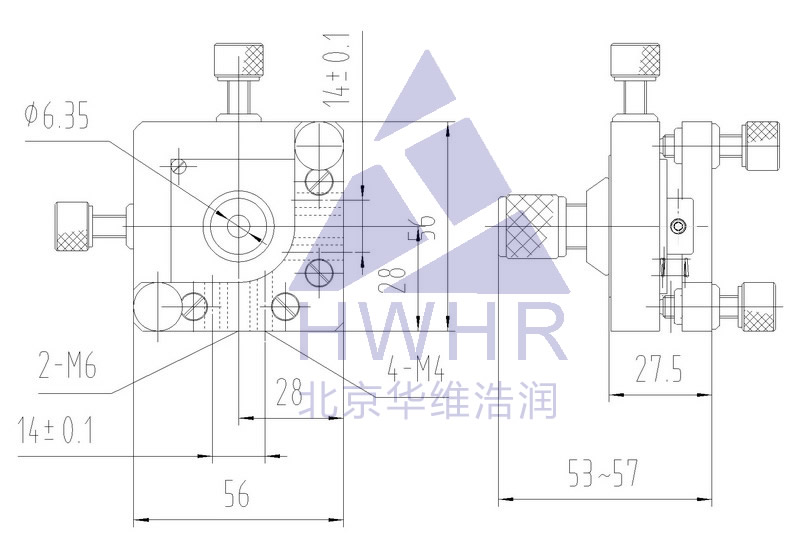

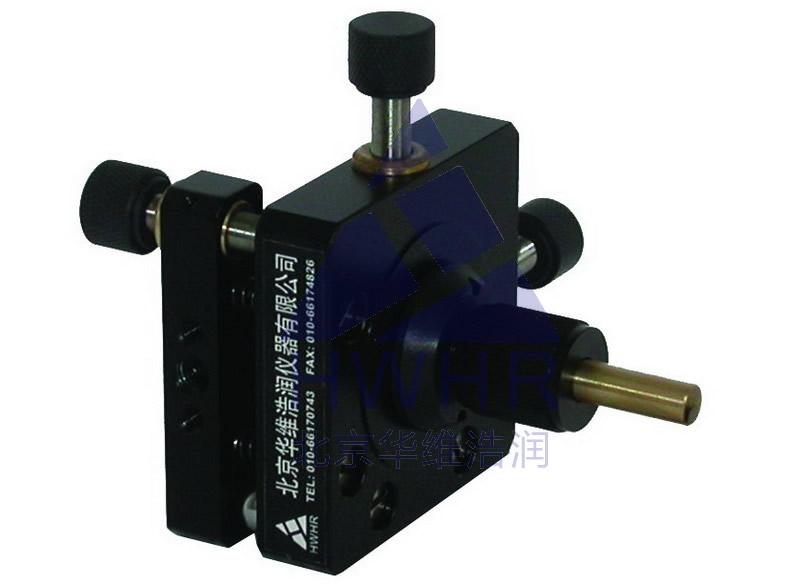

| FC101精密光纤耦合器 |
可对光纤进行的五维调整。以光纤轴向为X轴，此耦合器可沿X、Y、Z方向直线调整Tx、 Ty、 Tz，绕Y、Z轴倾斜调整θy、θz。Ty、Tz、 θy、 θz采用M6X0.25细牙微调螺纹副调节，Tx采用0.5螺距细牙螺杆调节，调整精细，稳定，重复性好。X轴位置为Ф6.35mm通孔，可装卡本公司生产的FG系列光纤卡头。
Tx: 6mm, 分辨率：0.001mm
Ty: ±2mm, 分辨率：0.0005mm
Tz: ±2mm, 分辨率：0.0005mm
θy: ±4o, 分辨率：5’’
θz: ±4o, 分辨率：5’’ |
FC101 |  |

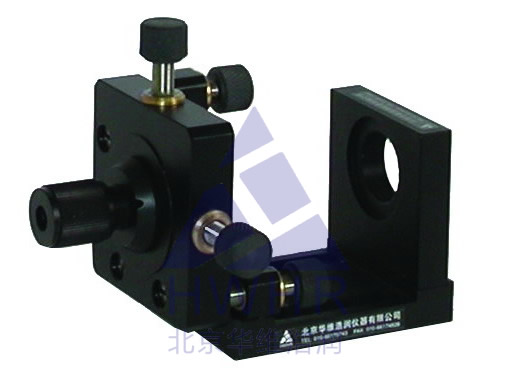

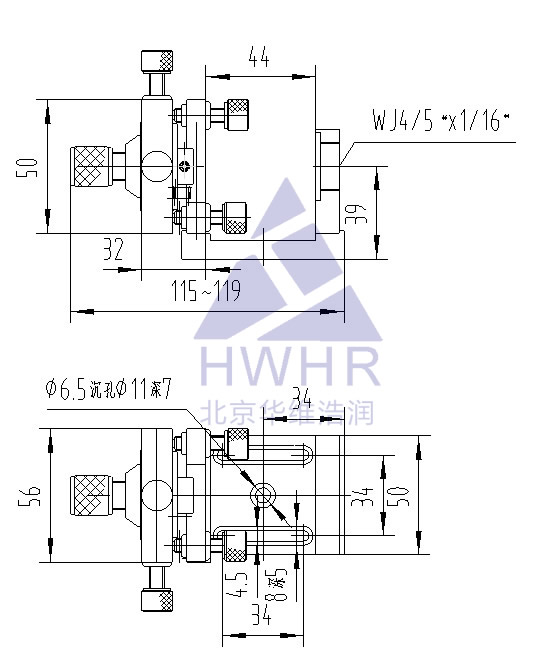

| | FC111精密光纤耦合器 | 本产品是将FC101精密光纤耦合器与显微物镜座一体化， 并且其底板上的安装孔更容易将其与其他调整架连接。
Tx: 6mm, 分辨率Resolution：0.001mm
Ty: ±2mm, 分辨率Resolution：0.0005
Tz: ±2mm, 分辨率Resolution：0.0005
θy: ±4o, 分辨率Resolution：5’’
θz: ±4o, 分辨率Resolution：5’’ |
FC111 |  |

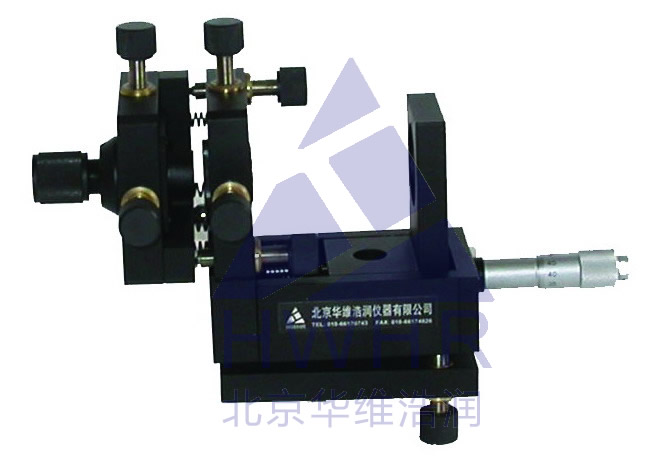

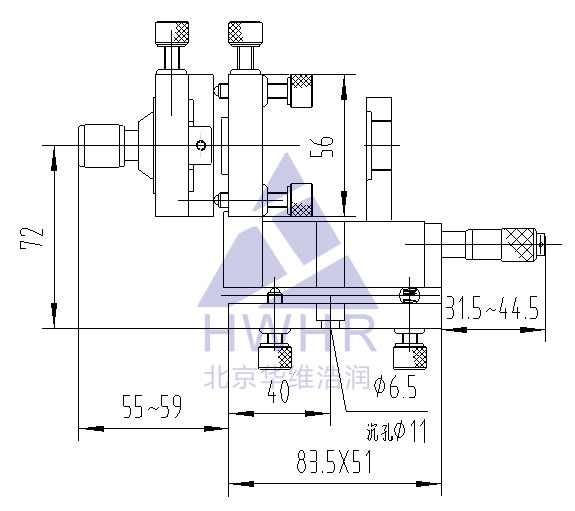

| | FC201精密光纤耦合器 | 本产品是FC111的改进产品，将显微物镜座改进为由测微头驱动的可移动式，使Tx调整范围更大，更方便且可定量。导轨采用精密线性滚珠导轨副，运动稳定，精度高。
Tx: 6mm
Ty: ±2mm
Tz: ±2mm
θy: ±4o
θz: ±4o
显微物镜调整范围：13mm
双轴倾斜调整范围：±4o |
FC201 |  |
|
|
|
|
